Adjustment instructions of front derailleur
with ARI round and oval chainrings

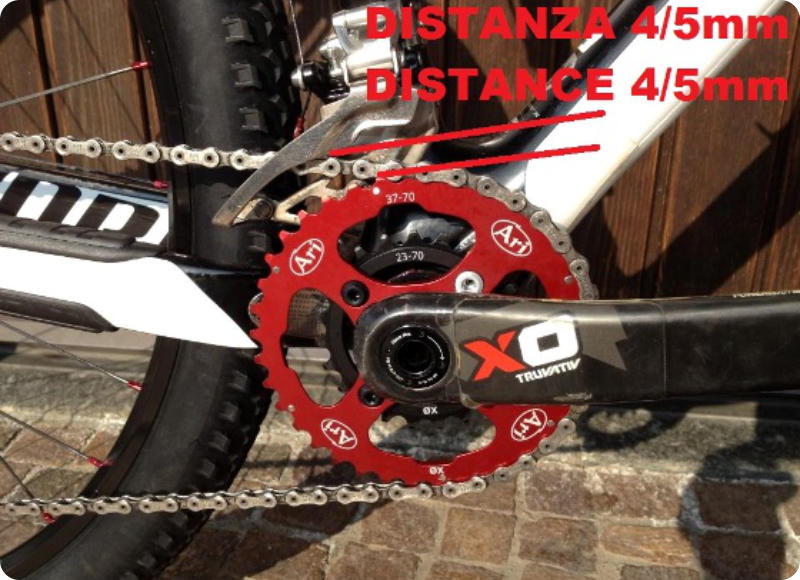

suggestion of derailleur
adjustment with
MTB round chainrings

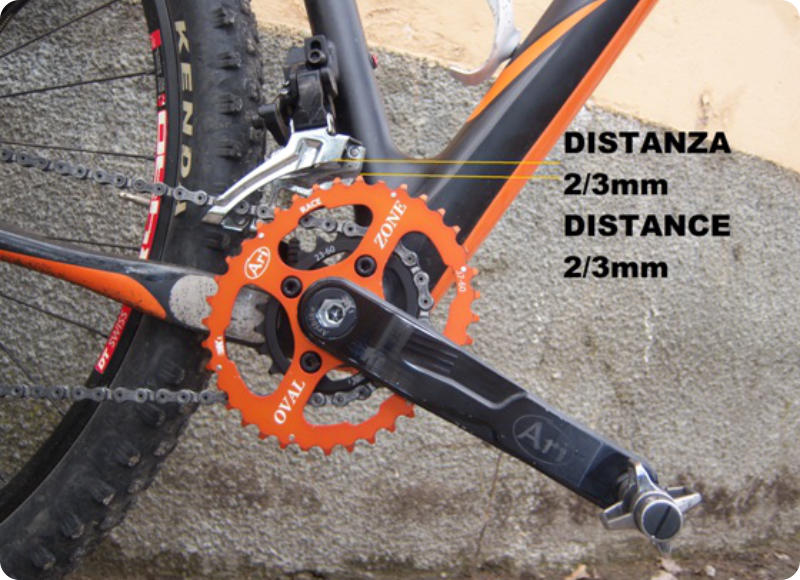

suggestion of derailleur
adjustment with
MTB oval chainrings

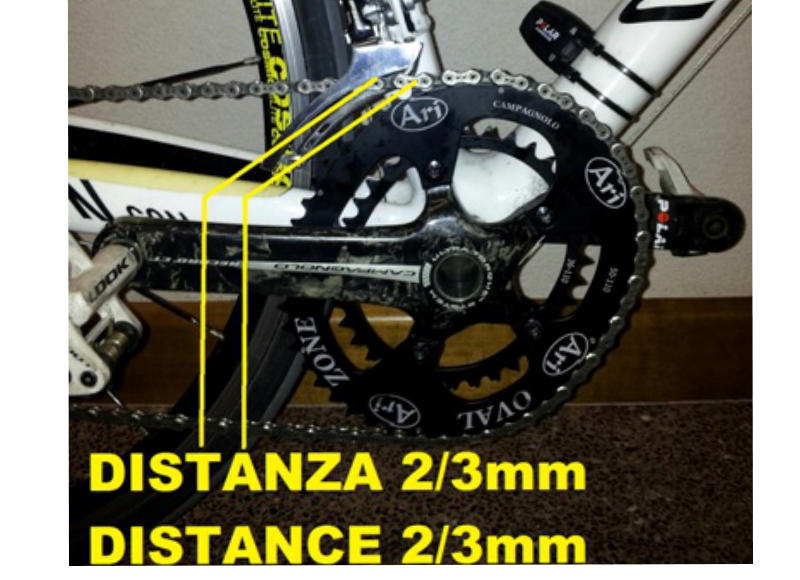

suggestion of derailleur
adjustment with
ROAD oval chainrings
N.B. Adjustment for MTB and ROAD oval chainrings:
distance between tooth and derailleur has to be taken at the point
of maximum ovality of the chainring
