ARI K1
MTB CRANKSET

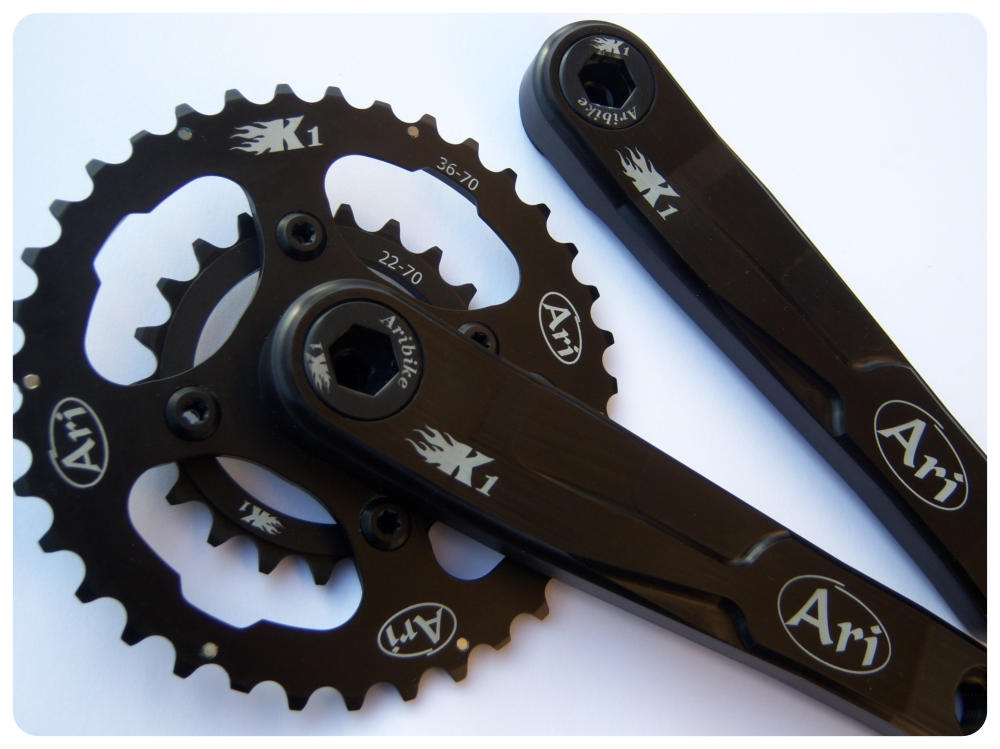

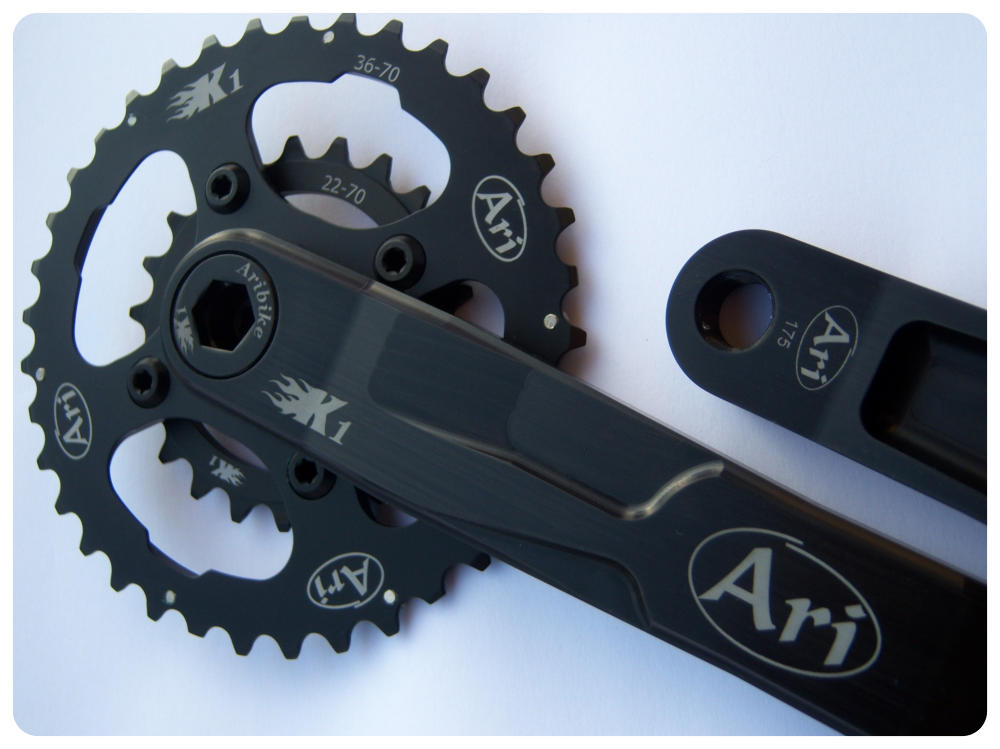

ARI K1 MTB CRANKSET

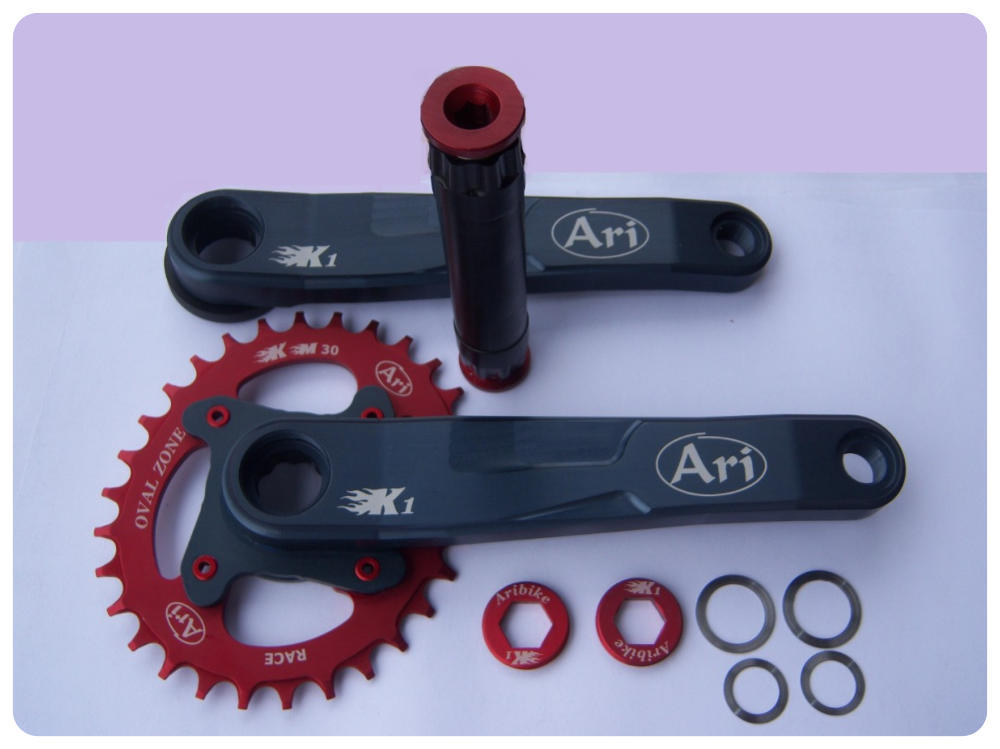

CRANKSET IS COMPOSED BY:

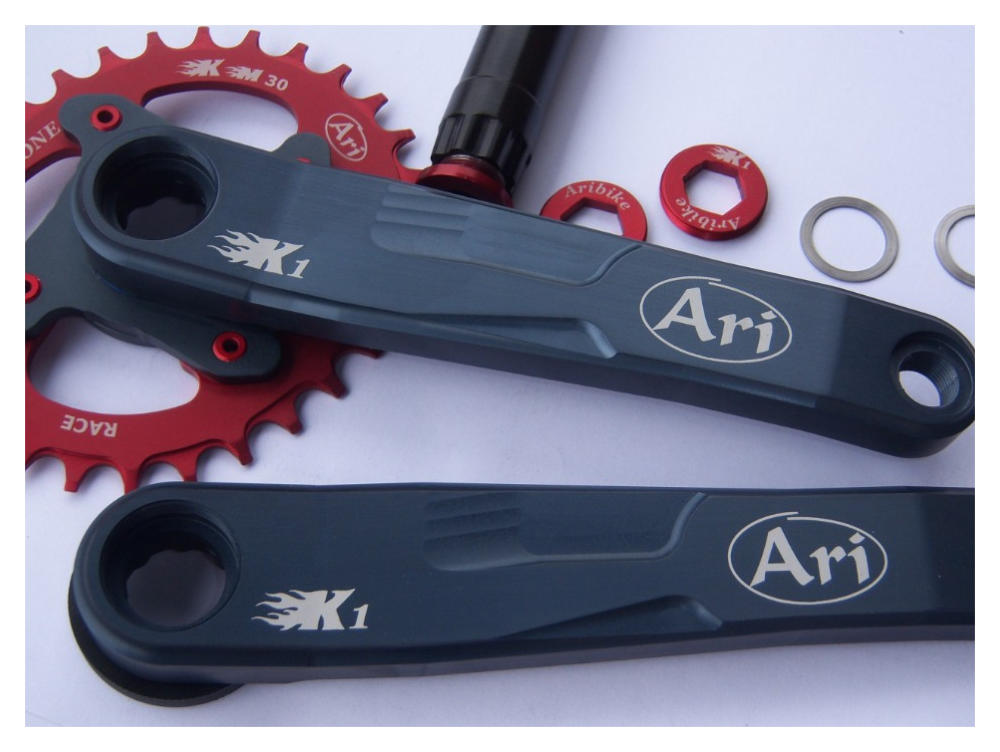

2 crank arms made of special aeronautical aluminium

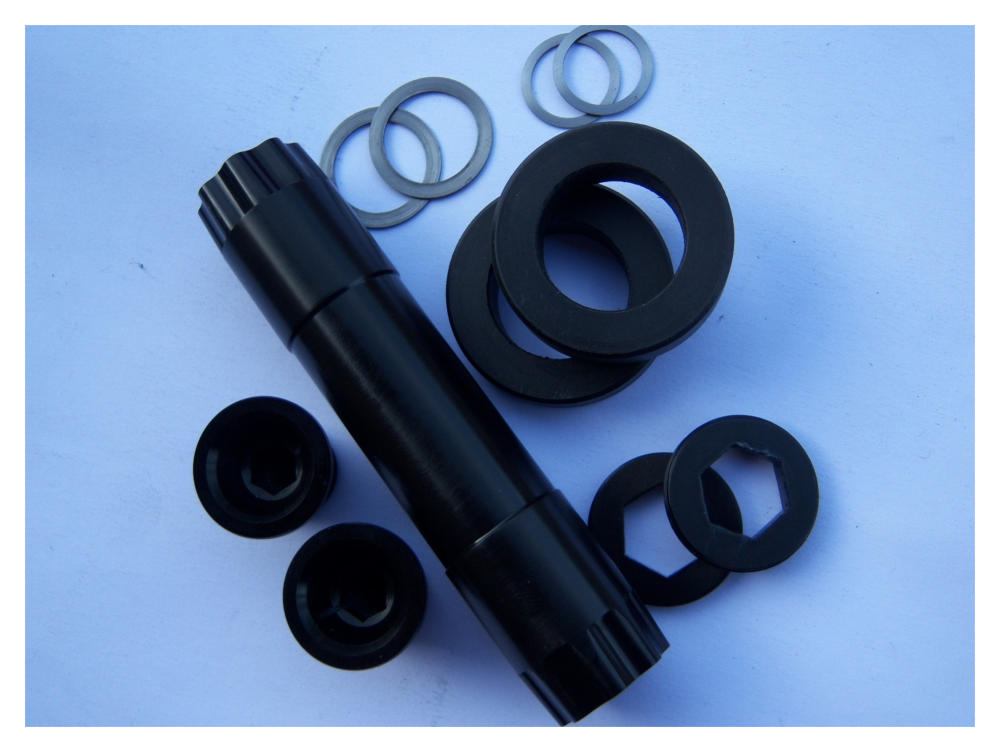

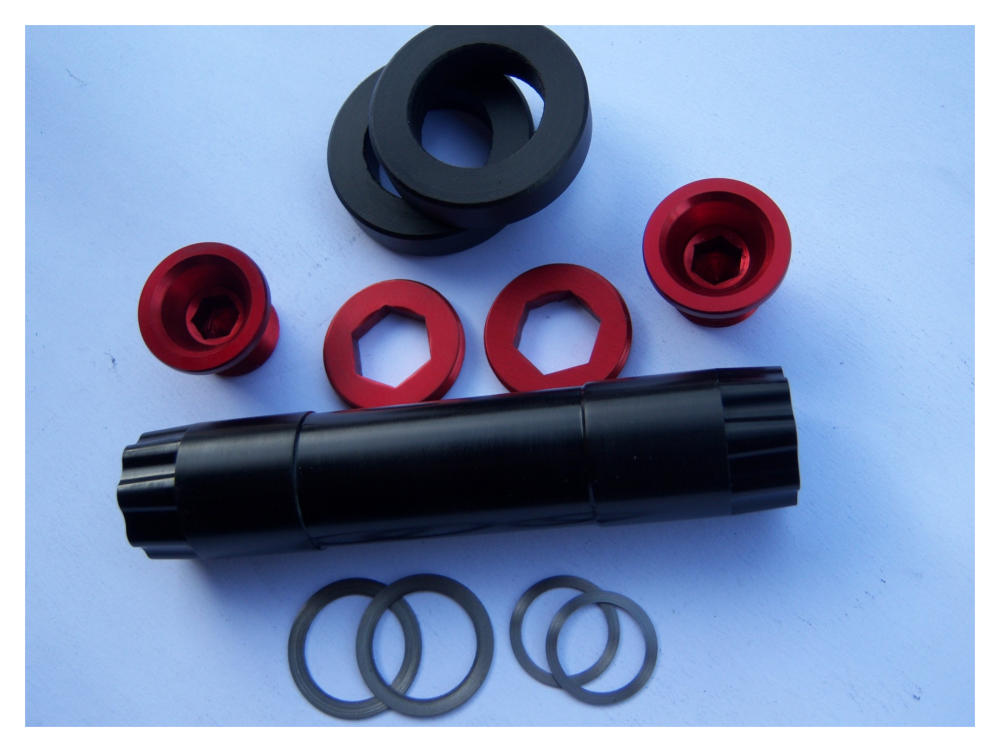

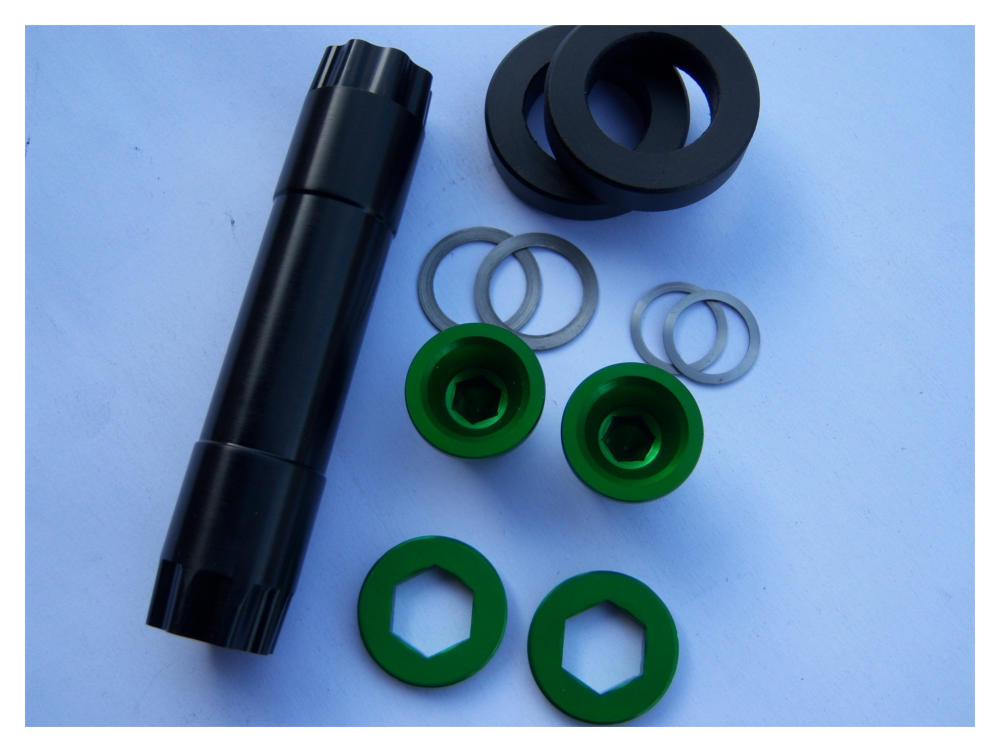

1 special steel thru-axle
1 spiderless with teeth of your choice
1 coaxial clearance adjustment lockring for left crank arm

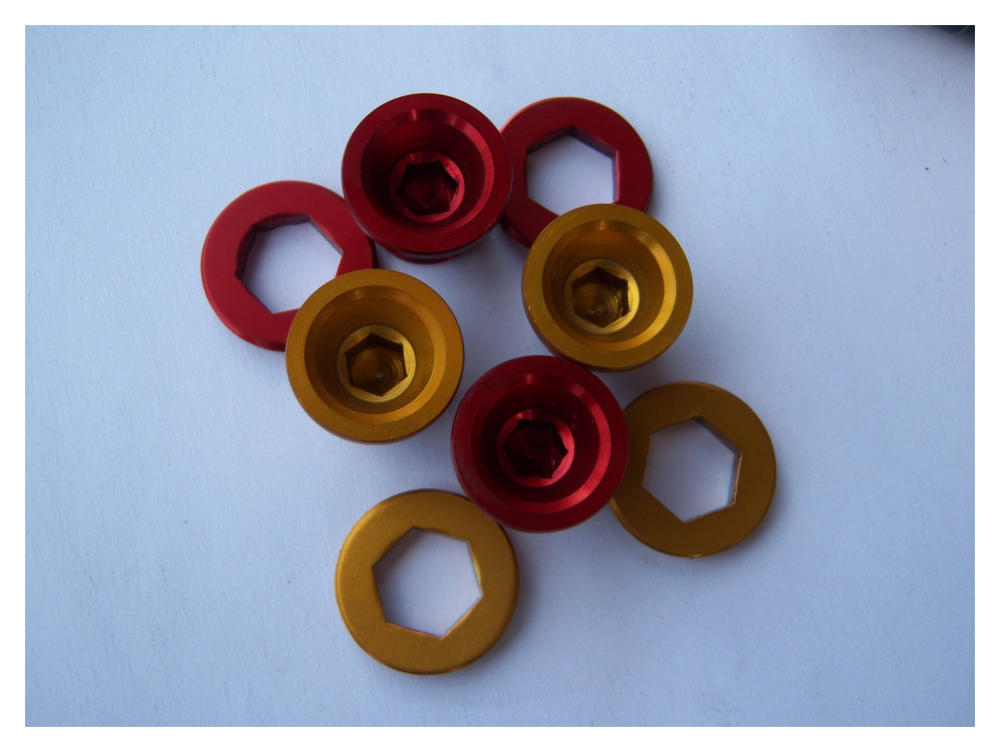

2 special aluminium alloy screws for tightening of crank arm with axle
1 first assembly special steel screw / crank arm tightening
2 alloy lockrings for self extraction of the crank in case of disassembly
MEASURES AVAILABLE ARE:
170 - 172,5 - 175 - 177,5 -180
as an option it is possible to produce crank arms of any length
CRANKSET IS COMPATIBLE WITH ALL BOTTOM BRACKET
Spindle is tailored to each frame and bottom bracket to achieve the best Qfactor and chainline.
Furthermore, in this way there is also the possibility to eliminate any possible interference between
chainstay and chainrings.
You don't need any spacers.
The lockring on the left crank allows optimal micro-adjustment of the axial clearance.
Maximum rigidity in chainring/crank arm mating thanks to the special profile designed to withstand
maximum traction without energy dispersion.
TEETH AVAILABLE

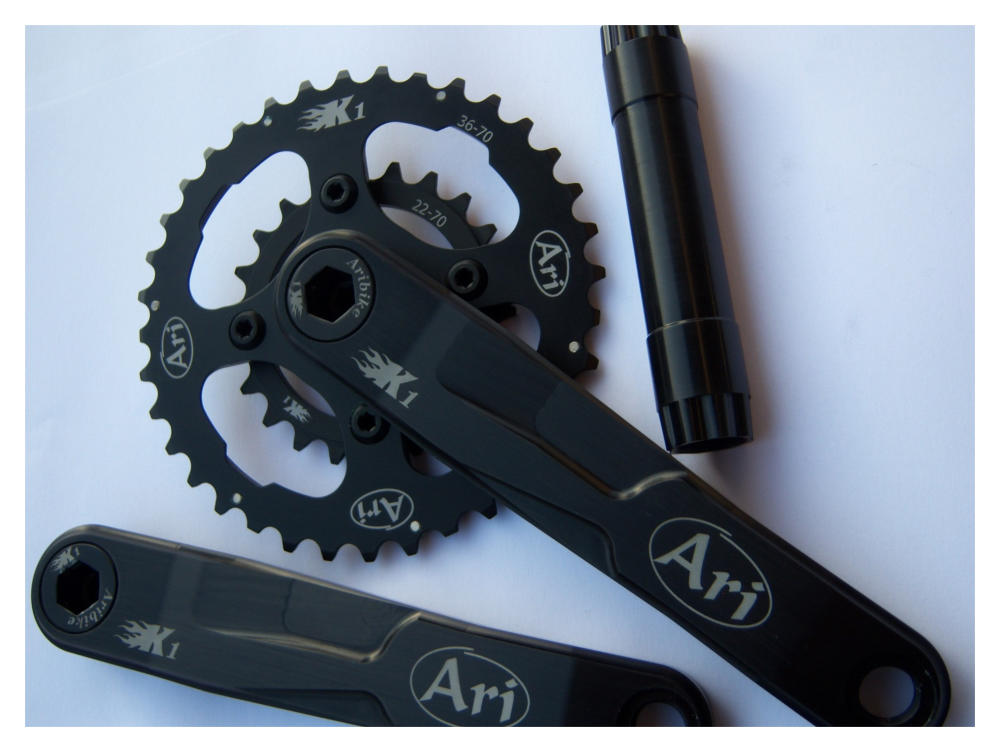

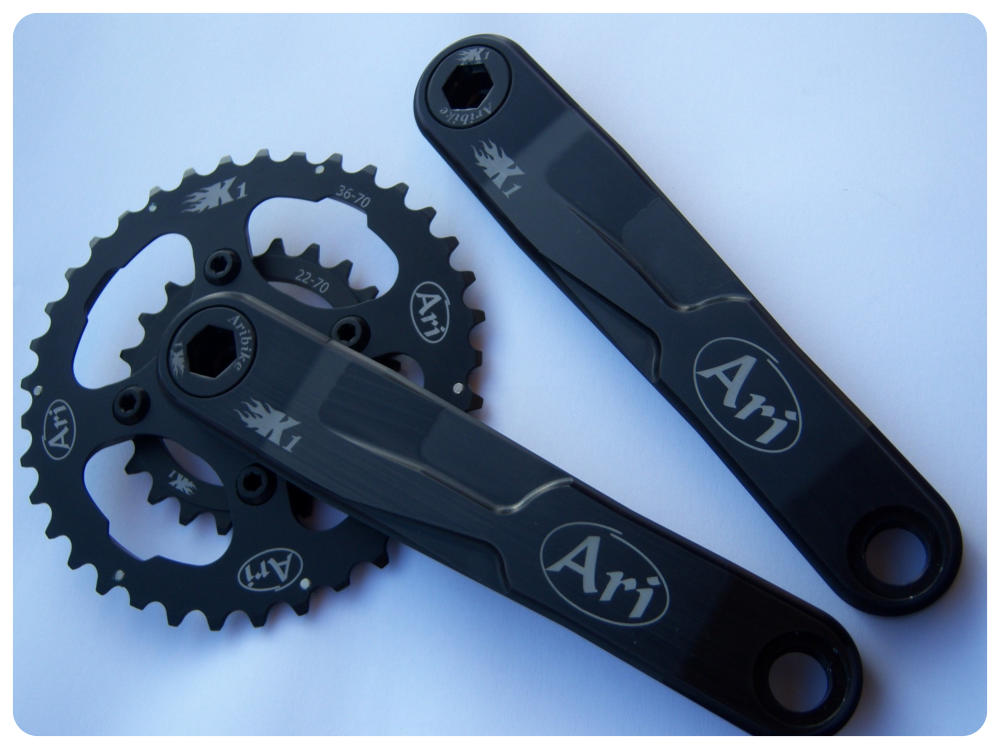

Double round layout: minimum internal chainring 20 teeth and minimum external chainring 32 teeth

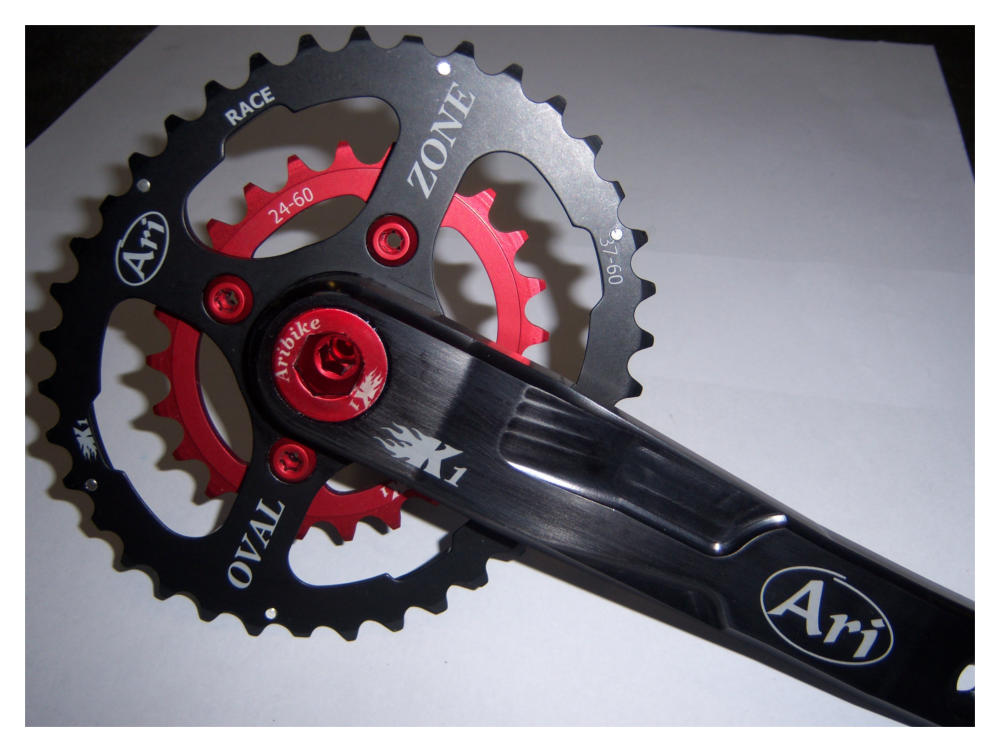

Double oval layout: minimum internal chainring 22 teeth and minimum external chainring 32 teeth

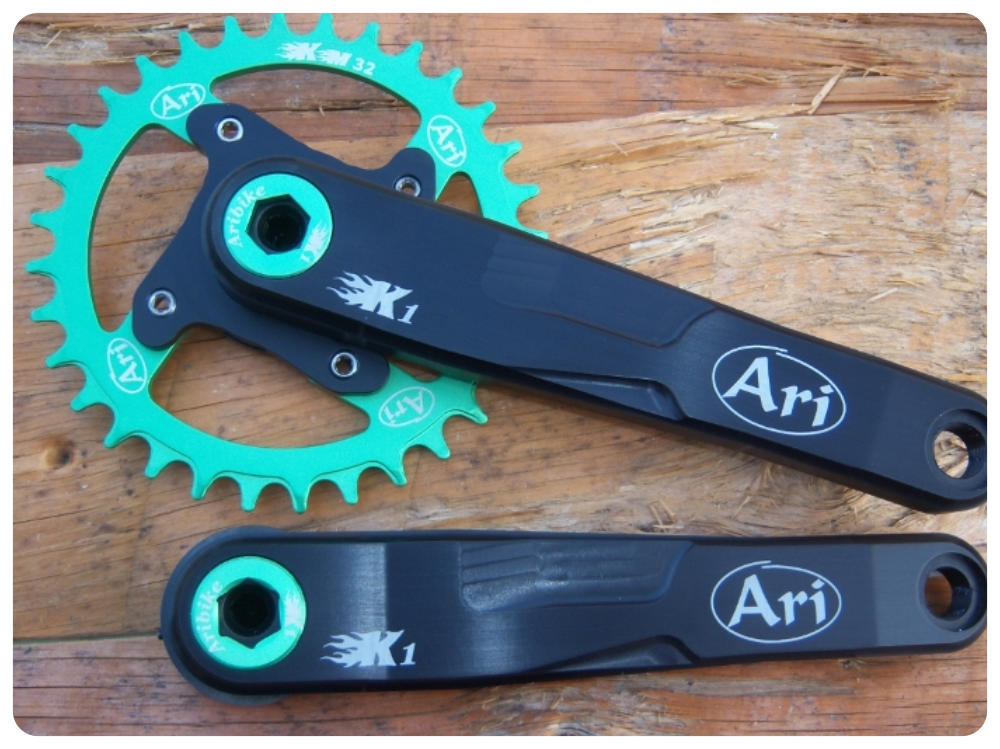

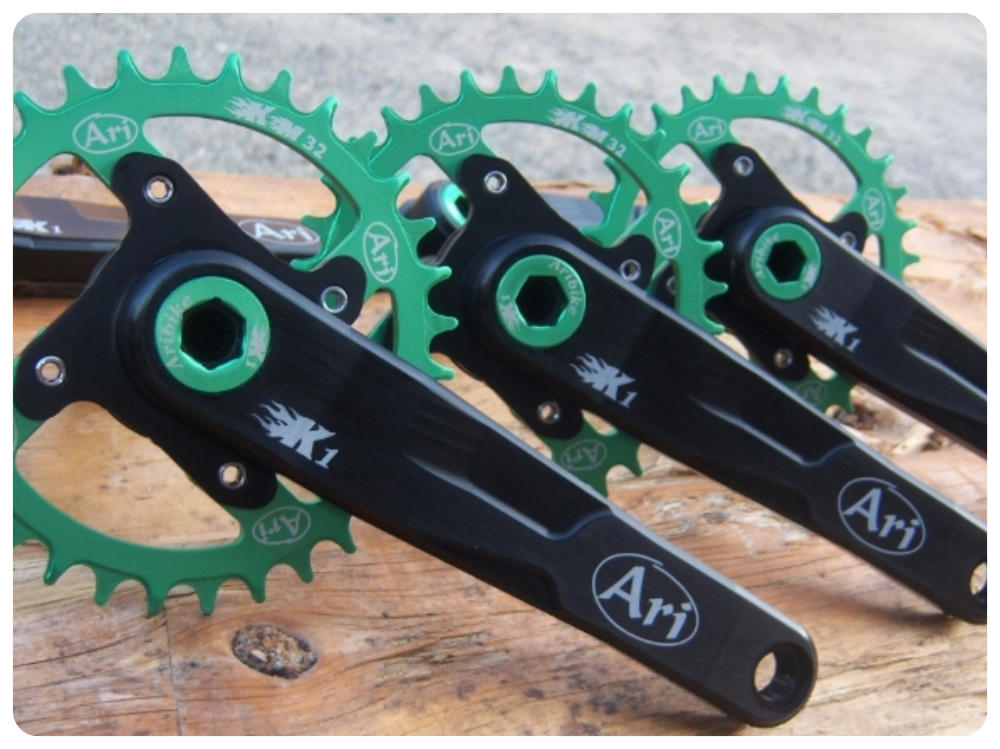

Round monoring layout: minimum internal chainring 28 teeth

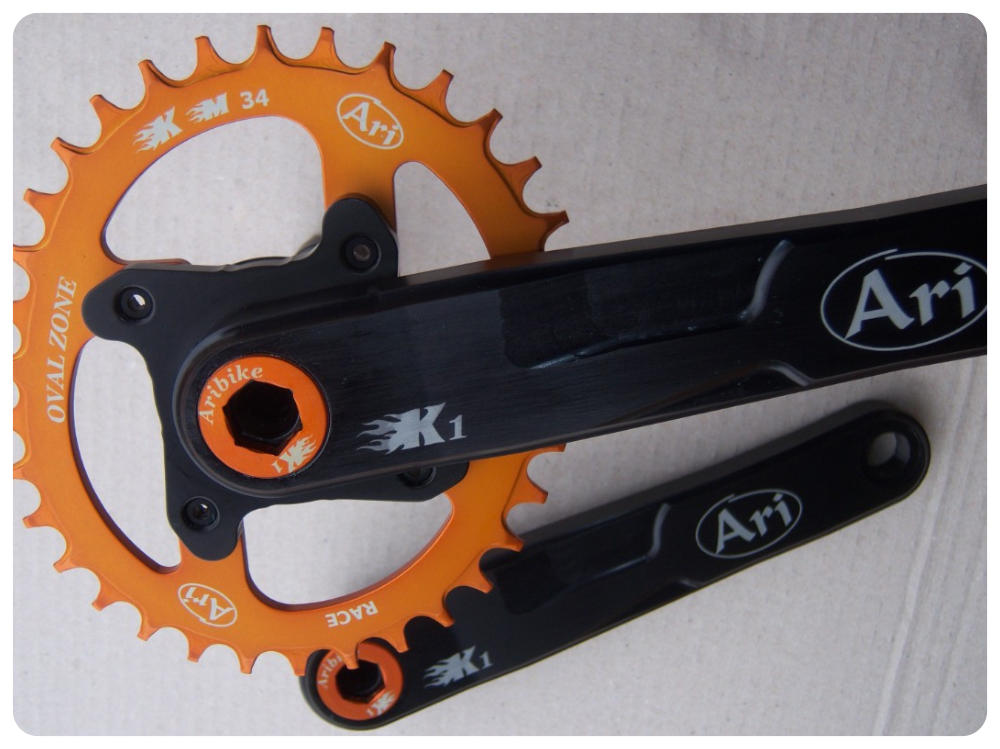

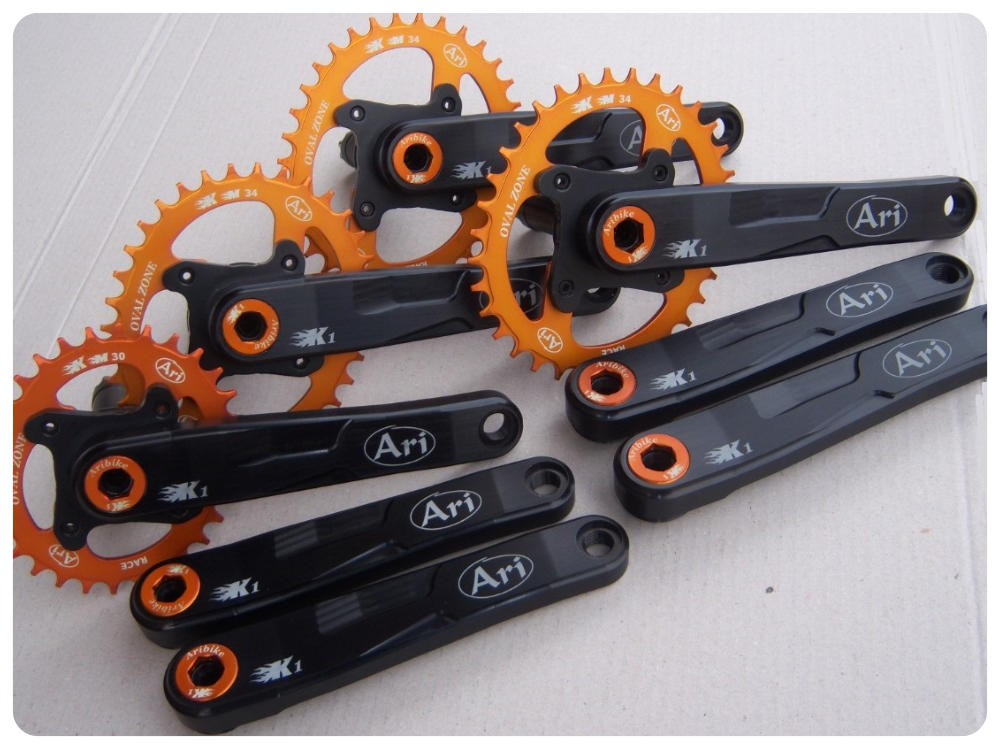

Oval monoring layout: minimum internal chainring 30 teeth
MAXIMUM POSSIBILITY TO CUSTOMIZE YOUR CRANKSET AS WELL AS IN
NUMBER OF TEETH ALSO IN COLORS ALREADY IN ARI CATALOGUE
ALL PRODCTS ARE MANUFACTURED IN ITALY AND ON C.N.C. MACHINES
WEIGHT 565 GRAMS

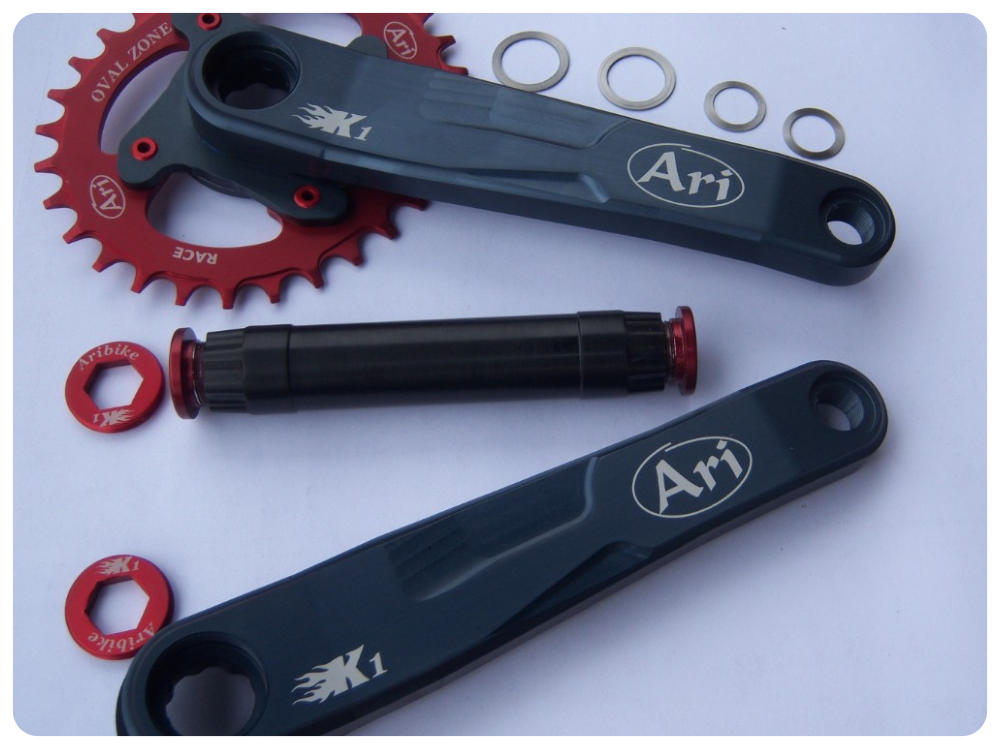

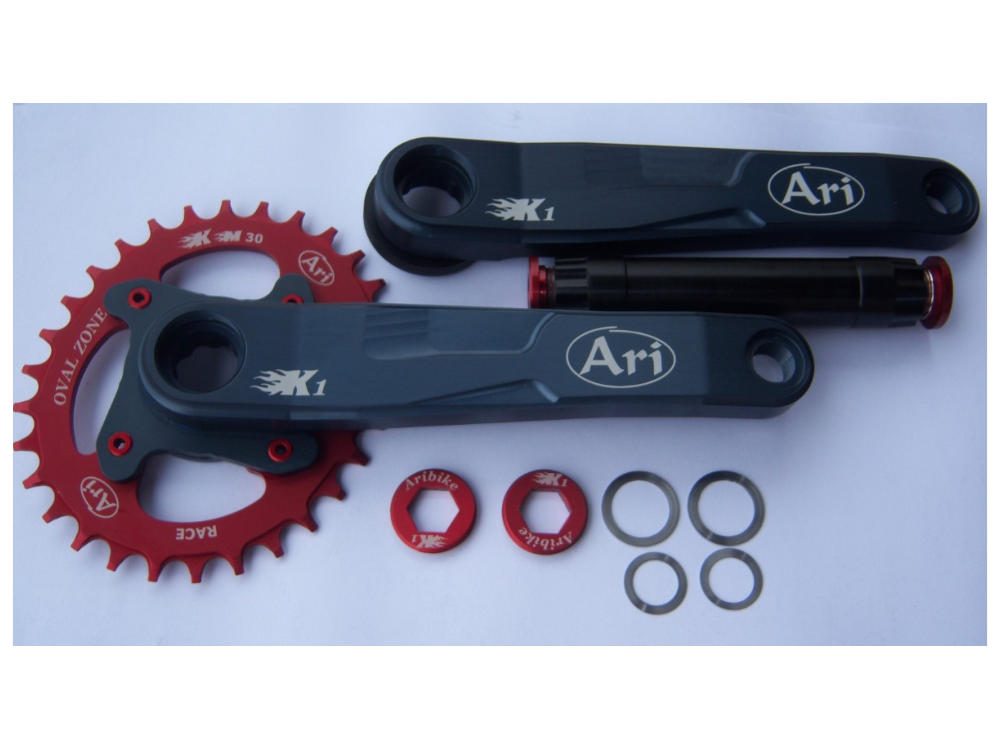

2 crank arms L175
1 axle L120
1 spiderless chainrings 36/22t
2 end plug + 2 whasers + 2 lockrings for self extraction
2 whasers for pedals
1 coaxial clearance adjustment lockring
Crankset can be supplied in double round / double oval / round monoring
or oval monoring layout at same price
art. 141
€ 549,00
starting from
