a partire da

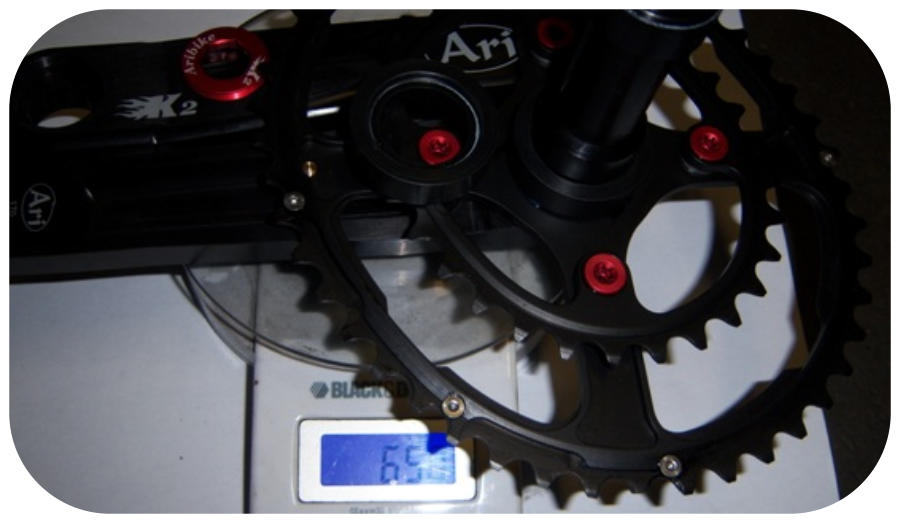

WEIGHT 650 GRAMS
2 crank arms L175
1 axle L120
1 spiderless chainrings 50/34t
2 end plug + 2 whasers + 2 lockrings for self extraction
2 whasers for pedals
1 coaxial clearance adjustment lockring
ARI K2
ROAD CYCLOCROSS CRANKSET

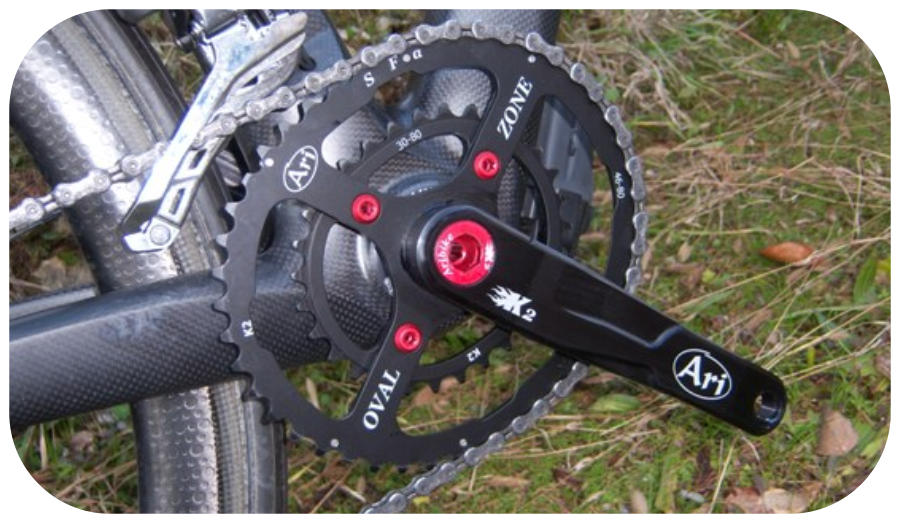

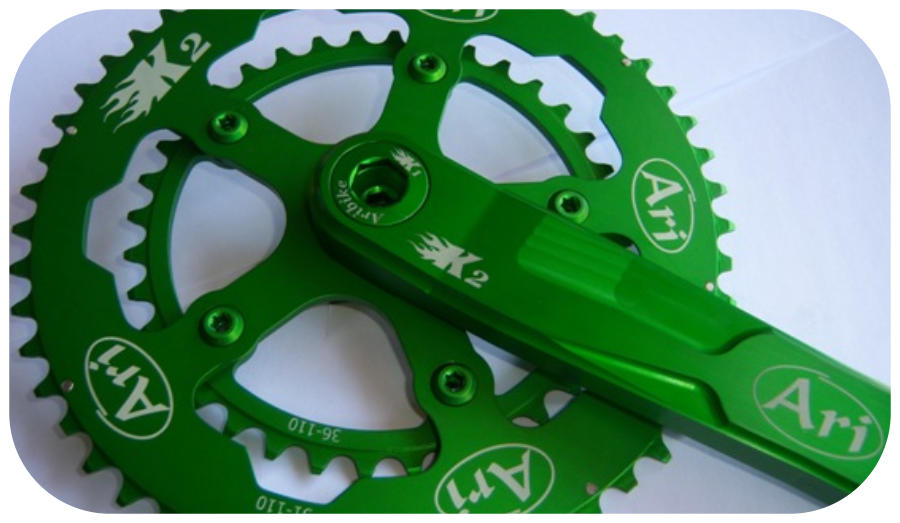

ARI K2 ROAD CYCLOCROSS CRANKSET
CRANKSET IS COMPOSED BY:
2 crank arms made of special aeronautical aluminium
1 special ergal thru-axles
1 spiderless with teeth of your choice
1 coaxial clearance adjustment lockrings for left crank arm
2 special aluminium alloy screws for tightening of crank arm with axle
1 first assembly special steel screw / crank arm tightening
2 alloy lockrings for self extraction of the crank in case of disassembly
MEASURES AVAILABLE ARE:
170 - 172,5 - 175 - 177,5 -180
as an option it is possible to produce crank arms of any length
CRANKSET IS COMPATIBLE WITH ALL BOTTOM BRACKET
Spindle is tailored to each frame and bottom bracket to achieve the best Qfactor and chainline
Furthermore, in this way there is also the possibility to eliminate any possible interference between chainstay
and chainrings.
You don't need any spacers
The lockring on the left crank allows optimal micro-adjustment of the axial clearance.
Maximum rigidity in chainring/crank arm mating thanks to the special profile designed to withstand maximum
traction without energy dispersion.
TEETH AVAILABLE
Double round layout: minimum internal chainring 20 teeth and minimum external chainring 32 teeth
Double oval layout: minimum internal chainring 22 teeth and minimum external chainring 32 teeth
Round monoring layout: minimum internal chainring 28 teeth
Oval monoring layout: minimum internal chainring 30 teeth
MAXIMUM POSSIBILITY TO CUSTOMIZE YOUR CRANKSET AS WELL AS IN
NUMBER OF TEETH ALSO IN COLORS ALREADY IN ARI CATALOGUE
ALL PRODCTS ARE MANUFACTURED IN ITALY AND ON C.N.C. MACHINES
Crankset can be supplied in double round / double oval /
round monoring or oval monoring layout at same price
art. 142
€ 600,00
starting from
